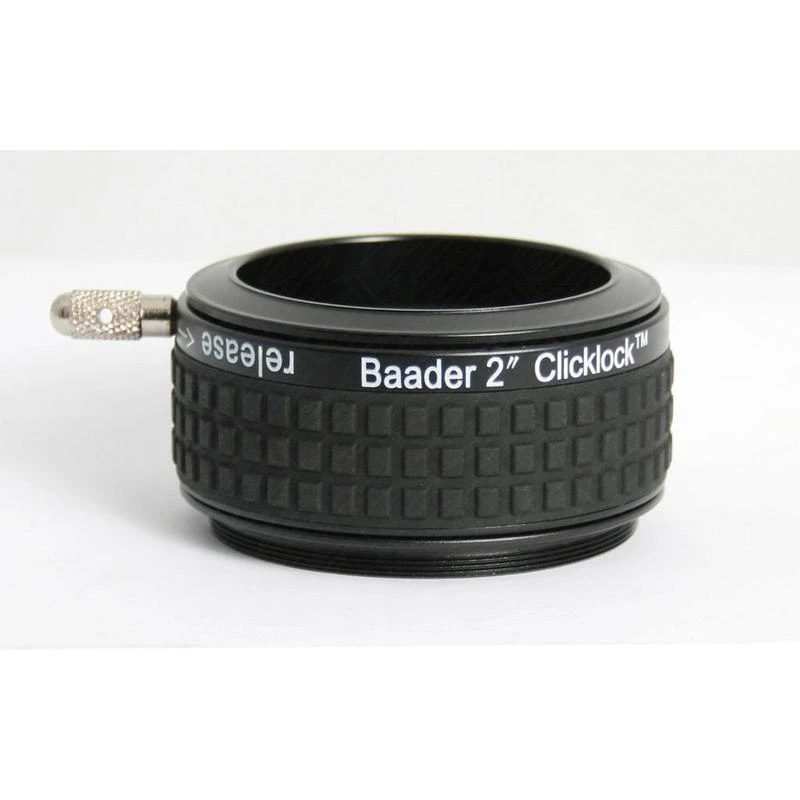

Baader 2″ ClickLock M60 Clamp (Vixen M60x1)

The Baader ClickLock system: you will never want to attach your 2″ accessories in any other way again.

The effectiveness and stability of the mechanics of the ClickLock system have been proven over years of testing and use of the smaller 1.25″ ClickLock clamp system. The 2″ ClickLock system is even more solidly constructed mechanically.

• 20° rotation of the clamp lever is enough to safely and securely attach 2″ accessories.
• the heaviest load so far tested is a complete C14 with screwed on SCL clamp (2956233) and a 2″ Click Lock star diagonal (2926100) and Scopos 30mm extreme eyepiece (3004030). The C14 was hence lifted on the eyepiece. However, we must point out that it is not recommended copying this test setup.
• the built-in ratchet indicates the position of the clamp both acoustically and by feel. So even in the dark and without having to look, you always know whether the clamp is open or closed.
• massive clamping ring – holds the most expensive accessories absolutely securely without causing scratches or pressure marks.
• CL clamp – available for a wide range of telescope systems. The extensive range available enables Baader 2″ ClickLock clamps to be retrofitted onto a wide range of telescopes.(ClickLock clamps for Vixen and other brands are in preparation)
• the position of the clamp lever is adjustable by 6 camera slotted screws, or 6 Allen screws allow the position of the CL clamp to be adjusted with Hex key, making it optimal or left or right-handed users.
