Astrodon Filters Photometrics UVBRI UV-Filter 1,25″

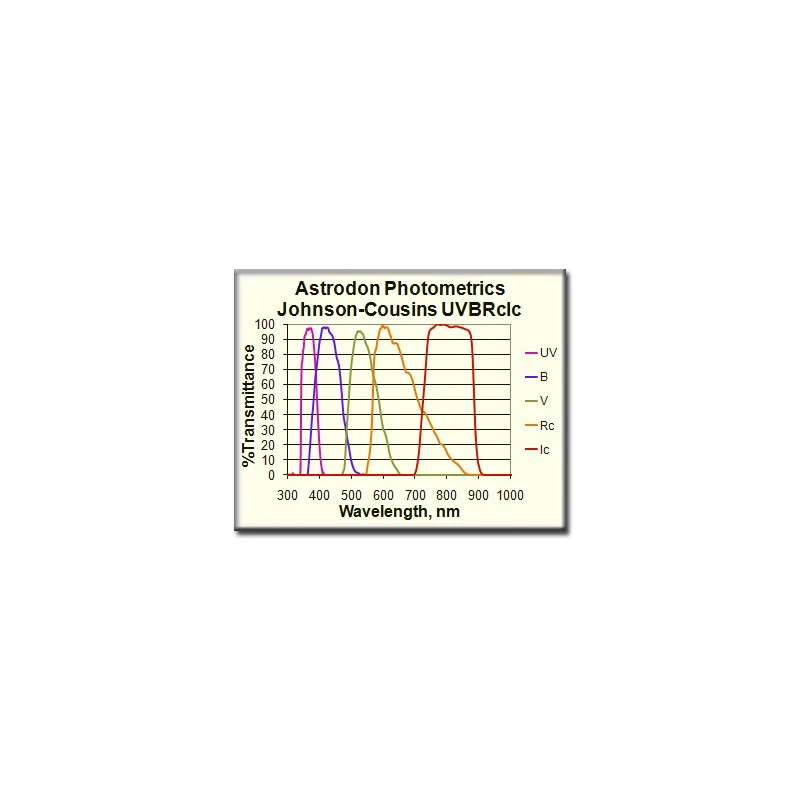

Astrodon Photometrics UVBRI Filters: Spectral profiles designed after UV, B, V, Rc, Ic Johnson/Cousins

UVBRI filters have been the standard for photometric measurements for decades. They have evolved over time as technology changed. H. Johnson in the 1950s and A.W.J. Cousins in the 1970s designed these filters for photomultiplier tubes (PMT). M. Bessell in the early 1990s selected colored glasses to match the Johnson/Cousins designs for CCD cameras of the time. However, Bessell’s designs were based upon colored glasses available at the time. Some of those glasses (e.g. Schott KG-4 used in conjunction with Schott RG-9 to make the “I” photometric filter have been discontinued. Lastly, PMTs of the time limited light past 900nm, whereas modern CCDs are sensitive to 1100 nm. Thus, to truly match the Johnson/Cousins Ic filter, a dielectric coating must be used to block light past 900nm for CCD systems. This cannot be achieved with colored glasses. Astrodon use Ic and Rc (c = Cousins) to designate that they match the Johnson/Cousins designs with there coated filters, as closely as possible.

Astrodon Photometrics UVBRcIc:

• Achieve the highest transmission possible for fainter objects
• Use hard-oxide durable coatings (no V filter fogging) for durability
• Include A/R coating and construction that minimizes halos around stars
• Do not depend upon colored glasses being discontinued
• Includes Ic filter (which must use a 900 nm cut-off coating)

With the advent of high performance, hard and durable dielectric coatings, both high transmission in excess of 95% and durability can be achieved. Filters last longer and transmit more light. Durability is critical for long-term, consistent research.
